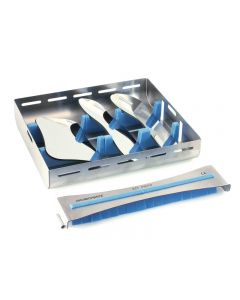

Tatum Sinus Kit 10 Instruments + Tray
The Tatum Sinus kit was designed by Hilt Tatum, the originator of this procedure, to access any anatomical configuration the surgeon may encounter when performing maxilliary sinus augmentation. All of the instruments are temptered to permit them to be bent and shaped to ensure the tip is always in contact with bone, while the curved back of the instrument can always be parallel to the lining it is elevating.
- • Ideal for safe elevation of the sinus membrane.
- • Each instrument allows for safe removal of bone buttresses.
- • Allows access in hard to reach areas of the sinus.
Green #1 & #2:
For use around the distal wall of the window. As the elevation is carried distally, the elevation will be accomplished on the facial wall (buccally), across the floor and to the medial wall (nose).
Yellow #3:
For use on the superior and inferior walls of the window. When used on the inferior aspect of the window, the elevation will be carried across the floor to the medial wall (nose). This instrument can also be used around the mesial wall of the window.
White #4, #5, #6:
These instruments are universal. The #4 is excellent for removing bony spicules around the window. The #5 and #6 can be used for elevating along the buccal wall towards the posterior wall.
Red #7 & #8:
To be used on buttresses located in the distal third of the sinus. The tips of the instruments should always by curved enough so the tips remain on the bone as they slide around behind the buttresses.
Black #9:
For use in the mesial quarter of the sinus when the window cannot be prepared anteriorly (i.e. bicuspid teeth are present).
Brown #10
This instrument is appropriate for soft tissue flap reflection. The wide end is used either up or down to elevate the lining on a medial wall (nose) which bulges into the sinus space.
